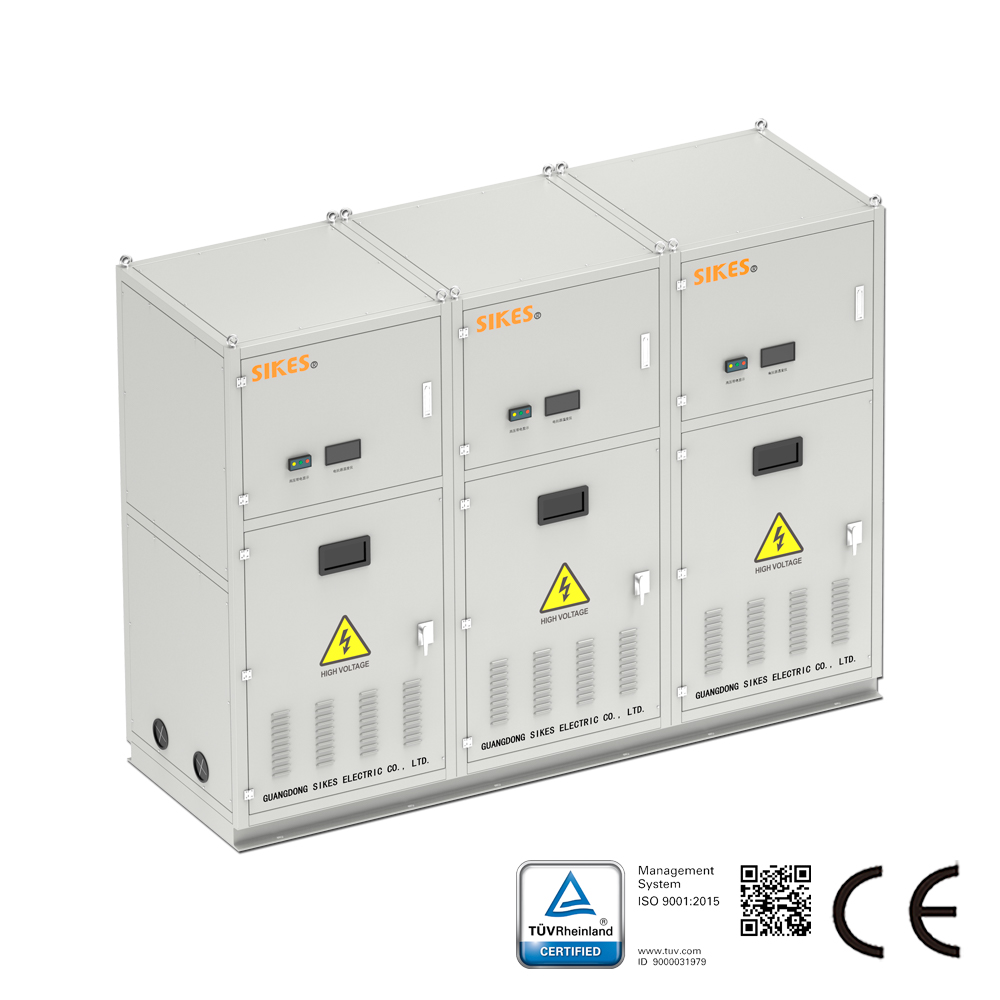

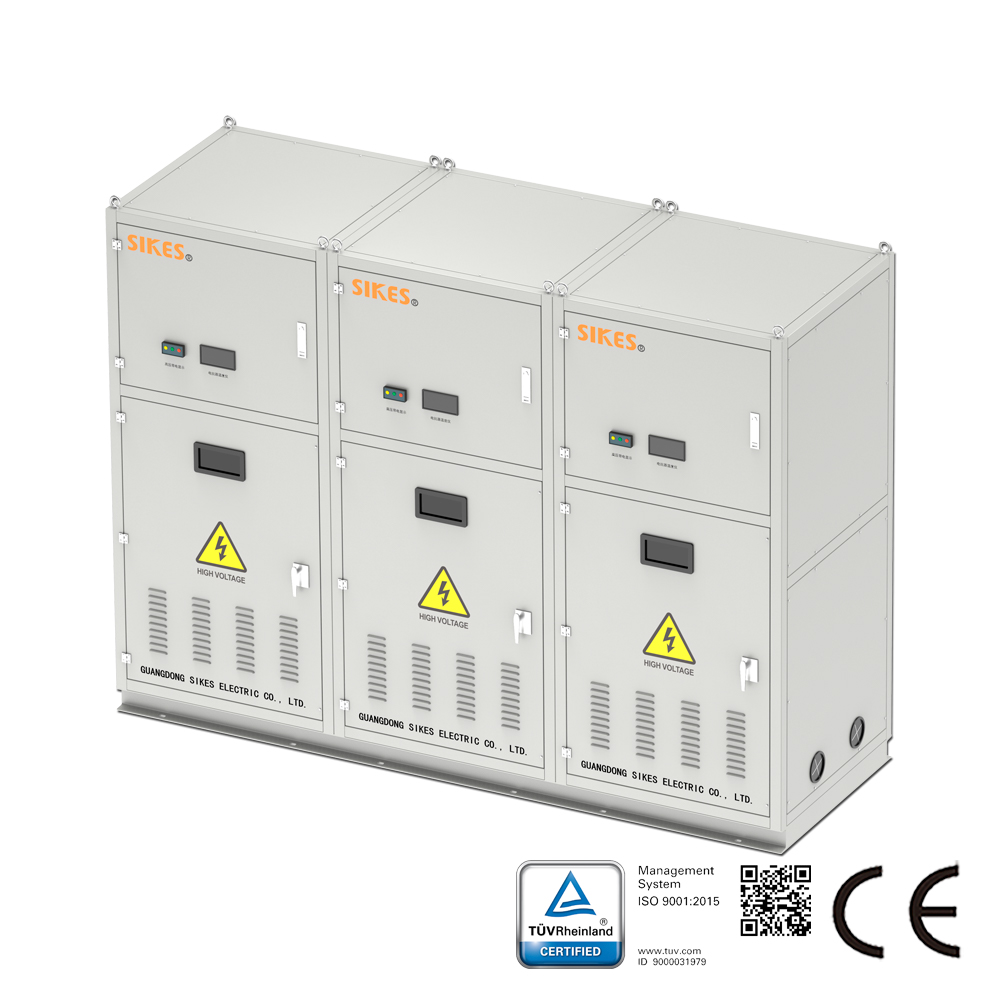

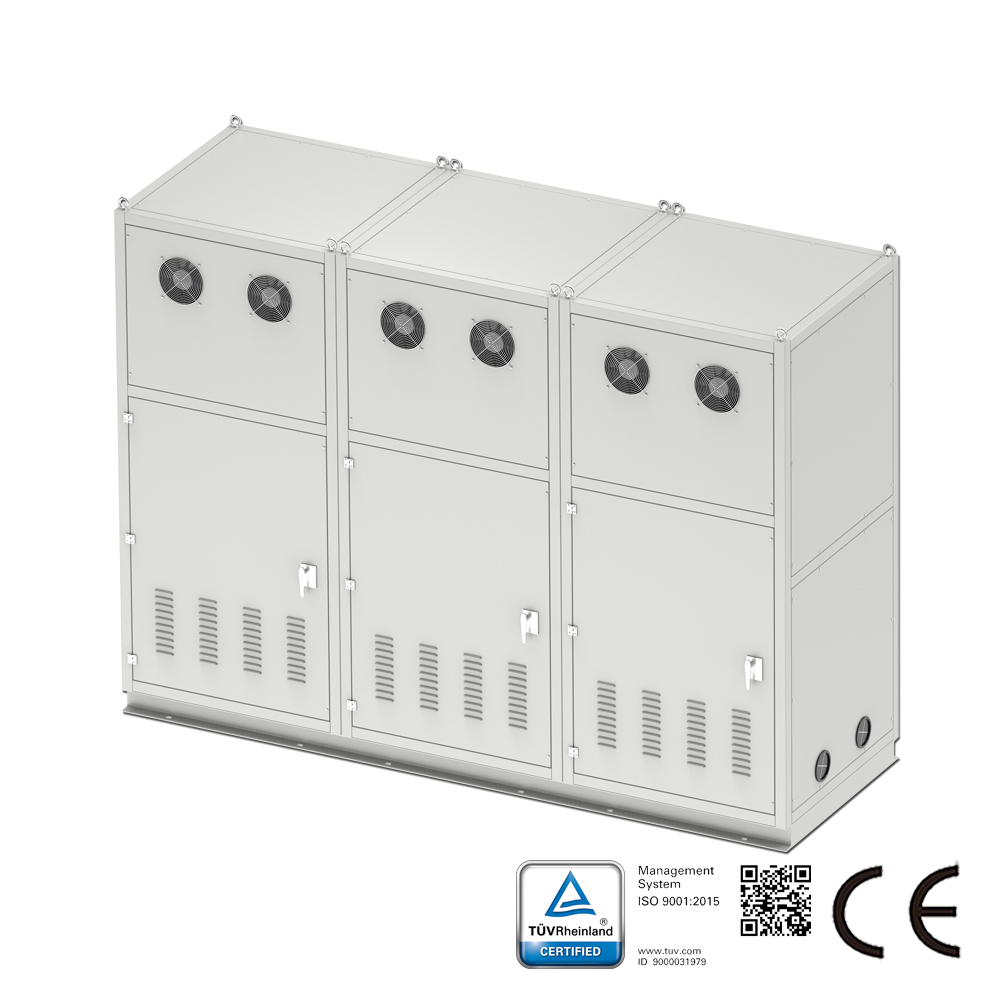

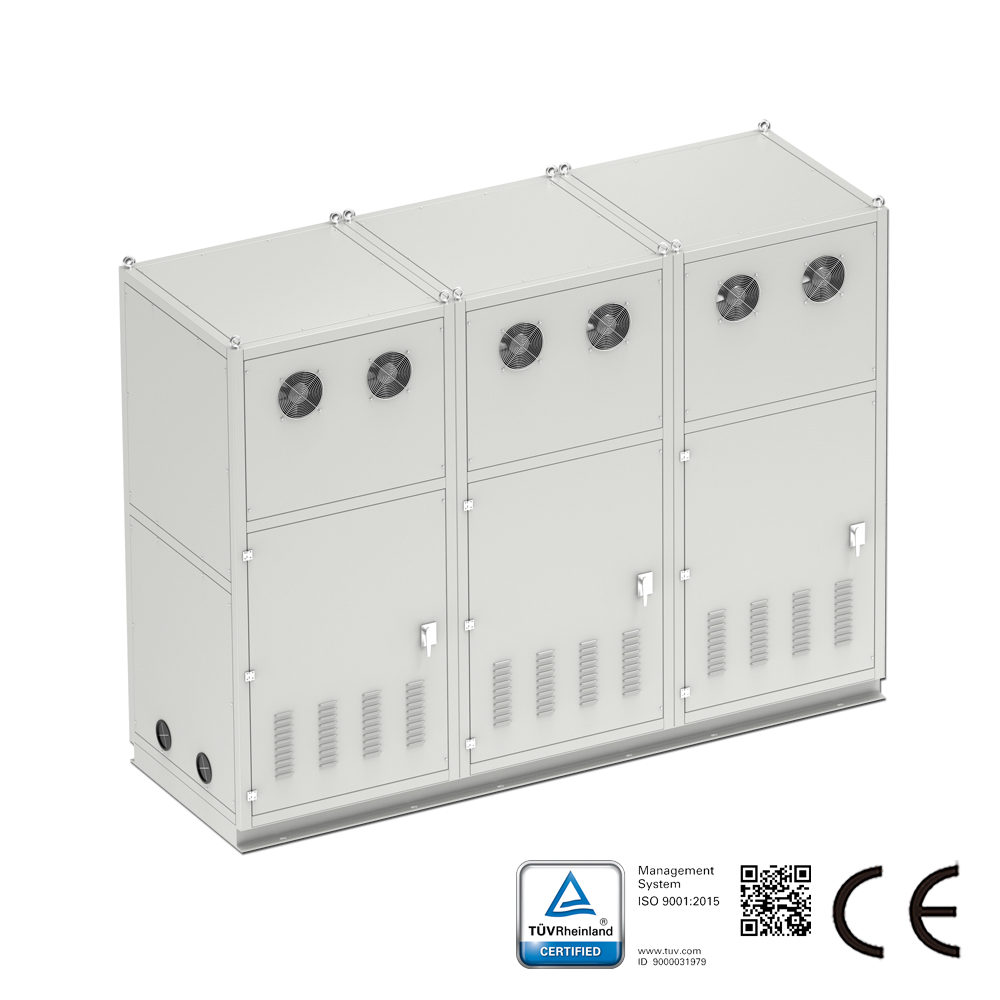

Passive Harmonic Filter , THDi＜5%, Rated Current 14A, Rated Voltage 11.5KV

Model: SKS-HFI-0014-14C5/05-A0

Sikes passive harmonic filter is designed for almost any kind of electronic applications with six pulse front end rectifiers . The filter can efficiently reduce the harmonic current distortion to required level.

Product or Solution Inquiry

Live Chat

Share to:

Specifications

AC/DC	AC
Connection	Copper bus bar
IP Class	IP20
Nominal Current Range (A)	14
Nominal Voltage range (V)	11.5K
Operating frequency	50 Hz
Phase	3 Phase
THDi	<5%
Type of optics	Passive

Product Details

Sikes passive harmonic filter is designed for almost any kind of electronic applications with six pulse front end rectifiers . The filter can efficiently reduce the harmonic current distortion to required level.

Features

Passive Harmonic Filter Product Features:
Quick installation and easy commissioning design;
Cost-effective passive harmonic filter;
Helps to comply with international power quality standards.

Technical Standard:
IEC61000，GB/T14549-93，IEEE 519

Passive Harmonic Filter Technical Chracteristics:
Norminal operating voltage:11.5KV;
Operating Frequency:50Hz(60Hz upon request);
THDi<<5% (system requirements:TDHv<2% ,line voltage unbalance<1%);
Efficiency:98% to 99% @ norminal line voltage;
Ambient temperature:-25 to +45℃.

Applications

Typical application:non-linear three-phase power supplies where potential risk is high due to thermal and electrical overload caused by harmonic currents.

Passive Harmonic Filter Applications:
DC Fast Chargers;
HVAC Installations;
Fan and pump applications;
Industrial automation and robotic equipment;
AC and DC Motor drives & frequency inverters;
Equipment with six pulse front end rectifier.
