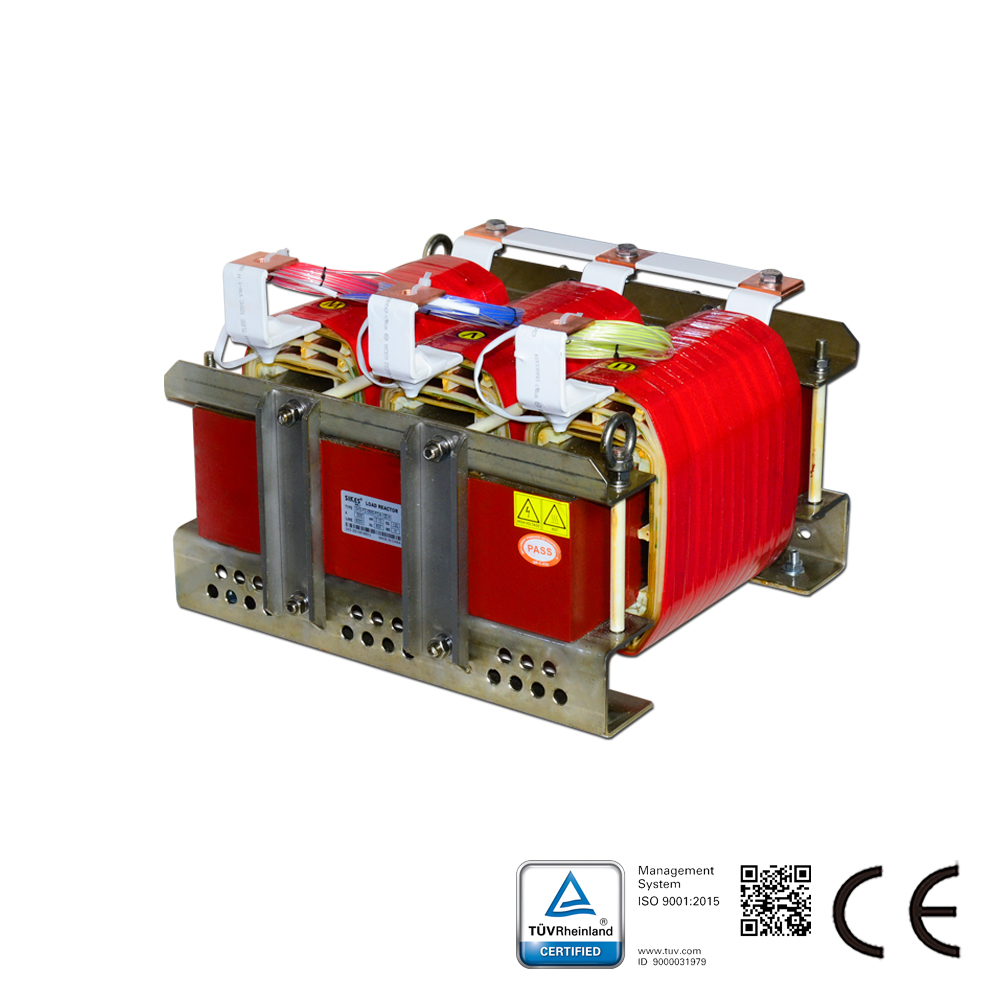

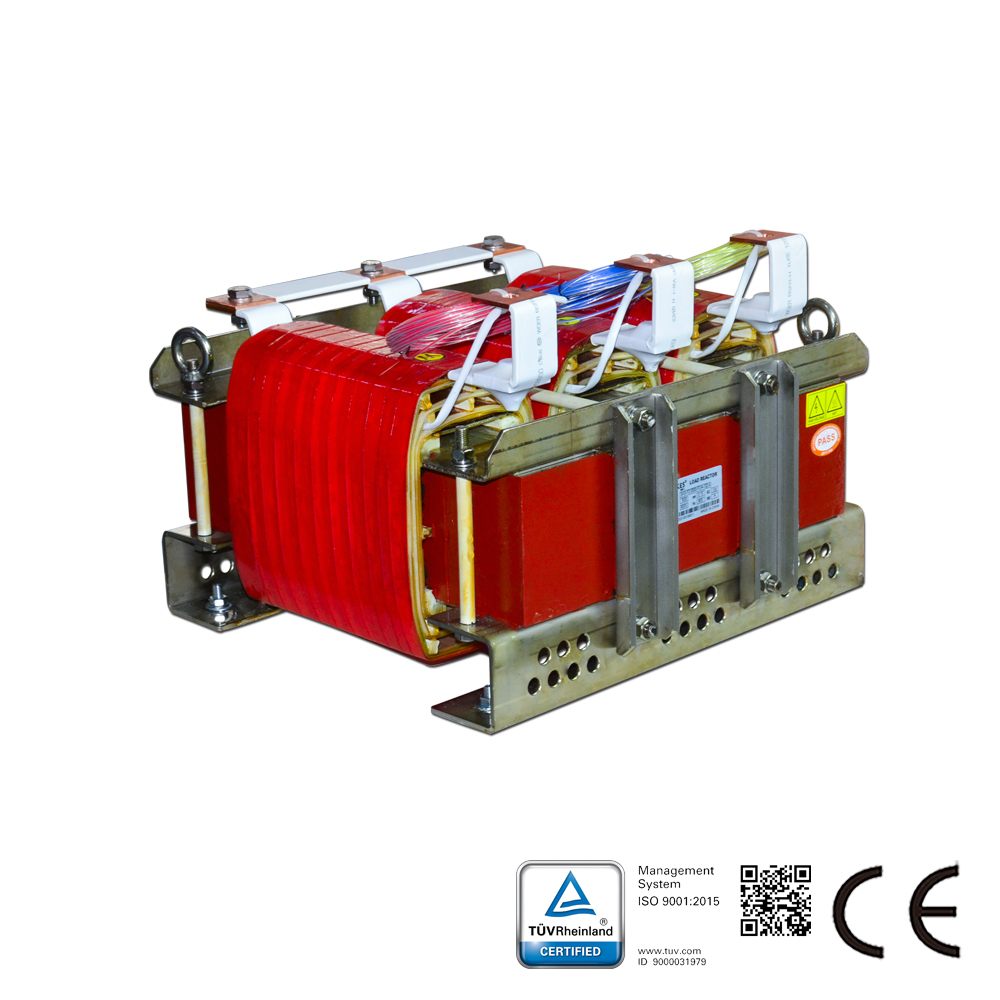

Load Reactor dedicated for electric vehicle motor drives testing 500A

Model: SKS-FZ-0500-FC/4-122.4

Description of Load Reactor： Sikes load reactor successfully installed and operated in a large electric vehicle test center in China for testing the EV motor drives. sikes high-precision load reactor was successfully installed and operated in a large electric vehicle test center in China. They are mainly used to test various performance parameters of EV motor drives.One or more high-precision load reactors work to be as an inductive load bank to simulate a combined electric vehicle. This purely inductive load saves a lot of energy for long-term continuous testing.

Product or Solution Inquiry

Live Chat

Share to:

Specifications

AC/DC	AC
Inductance Value(mH)	0.15mH
Insulation Class	H
Nominal voltage range(V)	600
Phase	3 Phase
Operating frequency	600Hz
Nominal Current range(A)	500

Product Details

Description of Load Reactor：

Sikes load reactor successfully installed and operated in a large electric vehicle test center in China for testing the EV motor drives.

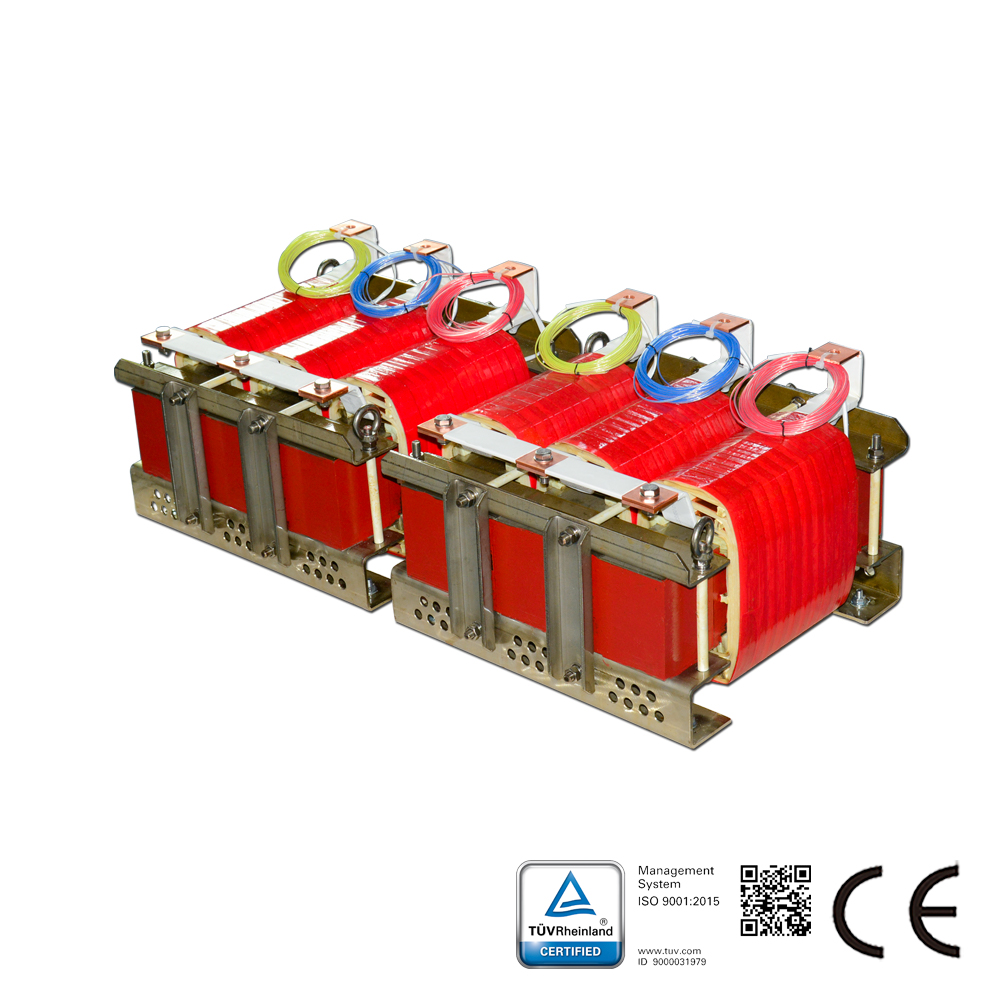

sikes high-precision load reactor was successfully installed and operated in a large electric vehicle test center in China. They are mainly used to test various performance parameters of EV motor drives.One or more high-precision load reactors work to be as an inductive load bank to simulate a combined electric vehicle. This purely inductive load saves a lot of energy for long-term continuous testing.

Features

Load bank parameters:
Circle time: 300s
600A for 270s
900A for 30s
1200A Unsaturated

Chracteristics:
1. Working frequency: 600Hz
2. Voltage range: 600V;
3. Insulation class: F / H;
4. Load features: Inductive load;
5. Ambient temperature: -10 ° C to +50 ° C;
6. Altitude: ≤3000m.
