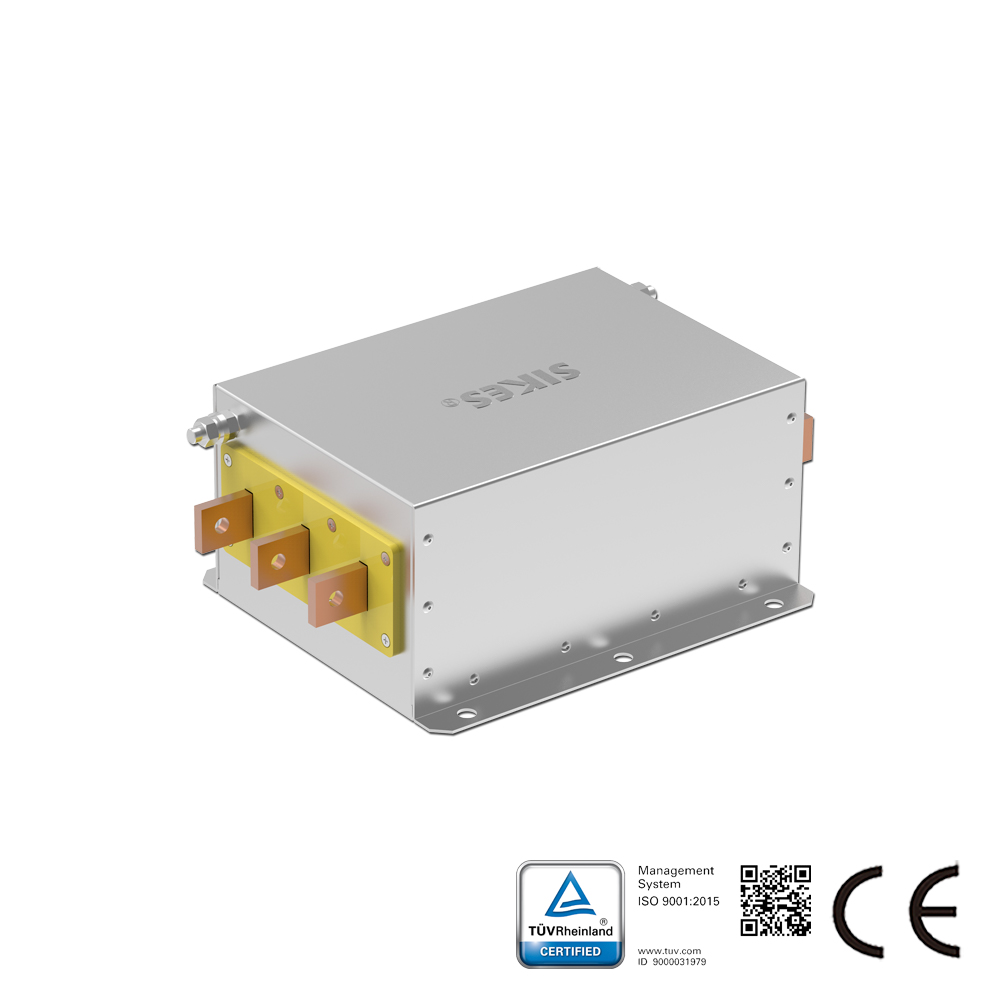

EFO 500A 440V 3-Phase Output Filters for load side of VFD

Model: SKS-EFO-0500/4-C
Designed based on the output stage characteristics of variable frequency drive and inverter systems. Used at the equipment output end, effectively reducing electromagnetic interference damage to loads, such as heating, abnormal noise, surge voltage and current. Excellent common-mode interference attenuation characteristics. Wide range ofavailablecurrent ratings. Optional voltage ratings available.
Product or Solution Inquiry Live Chat
Share to:

Specifications

Power system 3-Phase
Rated current(A) 500
Rated voltage(V) 440
Operating frequency (Hz) 50/60

Product Details

  1. Designed based on the output stage characteristics of variable frequency drive and inverter systems.
  2. Used at the equipment output end, effectively reducing electromagnetic interference damage to loads, such as heating, abnormal noise, surge voltage and current.
  3. Excellent common-mode interference attenuation characteristics.
  4. Wide range ofavailablecurrent ratings.
  5. Optional voltage ratings available.

Features

Rated voltage: 440VAC, 520VAC, 690VAC
Rated current: 5–2300A
Operating frequency: 50/60Hz
Connection method: European-style terminal, copper busbar
Operating temperature range: –25°C to 85°C
Applicable standards: UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939, GB15287

Applications

Typical Application Scenarios:
1. Output side of variable frequency drive systems;
2. Output side of inverter power supplies;
3. Warehouse automation systems;
4. Input side of inductive loads.
