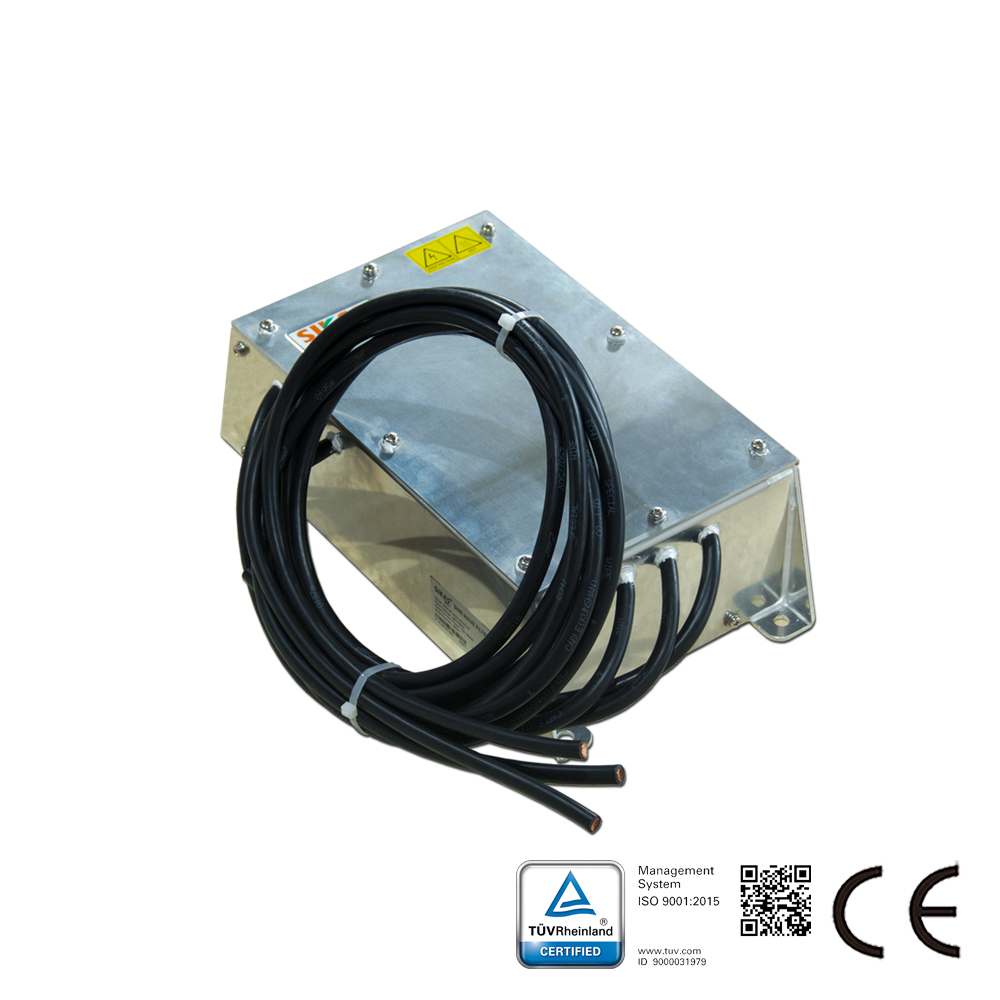

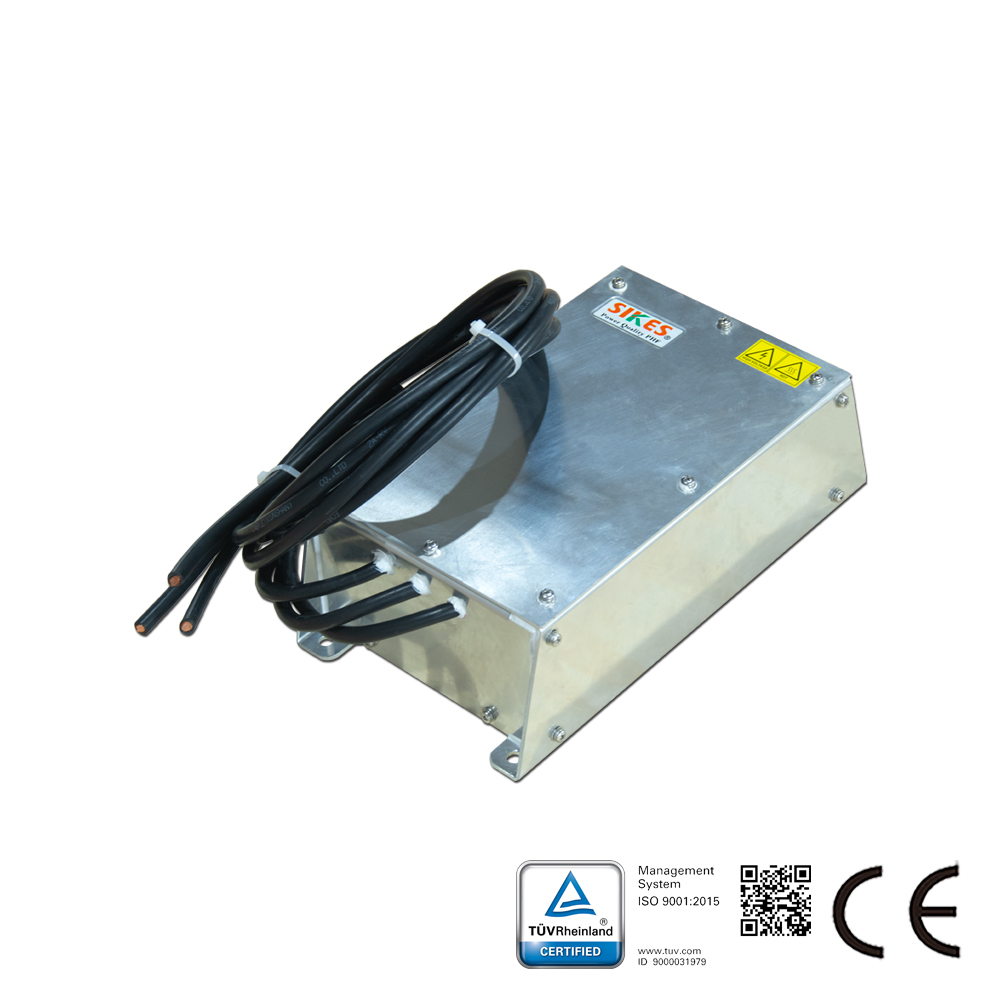

Sine wave filter plus EMC, with DC link connection Rated Current 30KW 75 A

Model: SKS-SF-0075-4C/03-LF-B0
Sine wave plus EMC filter  Description : This is a Sine Wave and EMC Output Filter for Motor Drives with a DC Link Access. It will eliminate the disturbance between phase and ground. Normal sine wave filter only works between phases. With improved sine wave filter you can use unshielded motor cables with good EMC performance. You can use old motor cables and still keep in EMC category C2. The best choice for energy saving for existing motors.
Product or Solution Inquiry Live Chat
Share to:

Specifications

Nominal Current Range (A) 75
Nominal Voltage range (V) 380
Phase 3 Phase
Power range (KW) 30
Switching Frequency 16KHz

Product Details

Sine wave plus EMC filter  Description :

This is a Sine Wave and EMC Output Filter for Motor Drives with a DC Link Access. It will eliminate the disturbance between phase and ground. Normal sine wave filter only works between phases. With improved sine wave filter you can use unshielded motor cables with good EMC performance. You can use old motor cables and still keep in EMC category C2. The best choice for energy saving for existing motors.

Features

Sine wave plus EMC filter Technical Data:
Smoothing of PWM drive output voltage
Efficient motor protection
Reduction of common-mode interferences on motor cables
Improvement of EMC environment
Elimination of motor bearing damages
Possibility to use very long unshielded motor cables
Improvement of system reliability

Sine wave plus EMC filter Technical Standards：
Capacitors:CEI EN 60831-1/2,IEC 831-1/2
Equipment:CEI EN60439-1,IEC 439-1,IEC /EN 60939
